Why Choose Our Industrial Belleville Spring Washer ?

Need help selecting the right material? Share your operating temperature, corrosion exposure, target spring force, and expected loading cycle for a more focused technical evaluation.

✅Material Selection for Different Working Conditions

From 51CrV4 and 60Si2MnA spring steels to 316 stainless steel and Inconel alloys, material selection can be evaluated according to load, fatigue, temperature, and environmental requirements.

✅Compact Load-Bearing Design

Belleville washers can deliver significant axial force within a small installation height, making them useful for engineered fastening systems and space-constrained mechanical assemblies.

✅Support for Fatigue-Sensitive Applications

Suitable materials, correct heat treatment, appropriate stress levels, and controlled manufacturing are important for disc springs exposed to repeated loading.

✅Corrosion-Resistant Options

Grades such as 17-4 PH, 17-7 PH, and 316 stainless steel can be considered where corrosion resistance is important. The best choice depends on the chemical environment, stress conditions, temperature, and required mechanical properties.

✅High-Temperature Material Options

Selected Inconel grades can be evaluated for applications involving elevated temperatures, oxidation, or demanding operating environments. The exact alloy and operating temperature must be confirmed for each design.

✅Specialized Electrical and Non-Magnetic Applications

Beryllium copper can be considered where electrical conductivity and non-magnetic properties are required, subject to spring stress, fatigue, and manufacturing requirements.

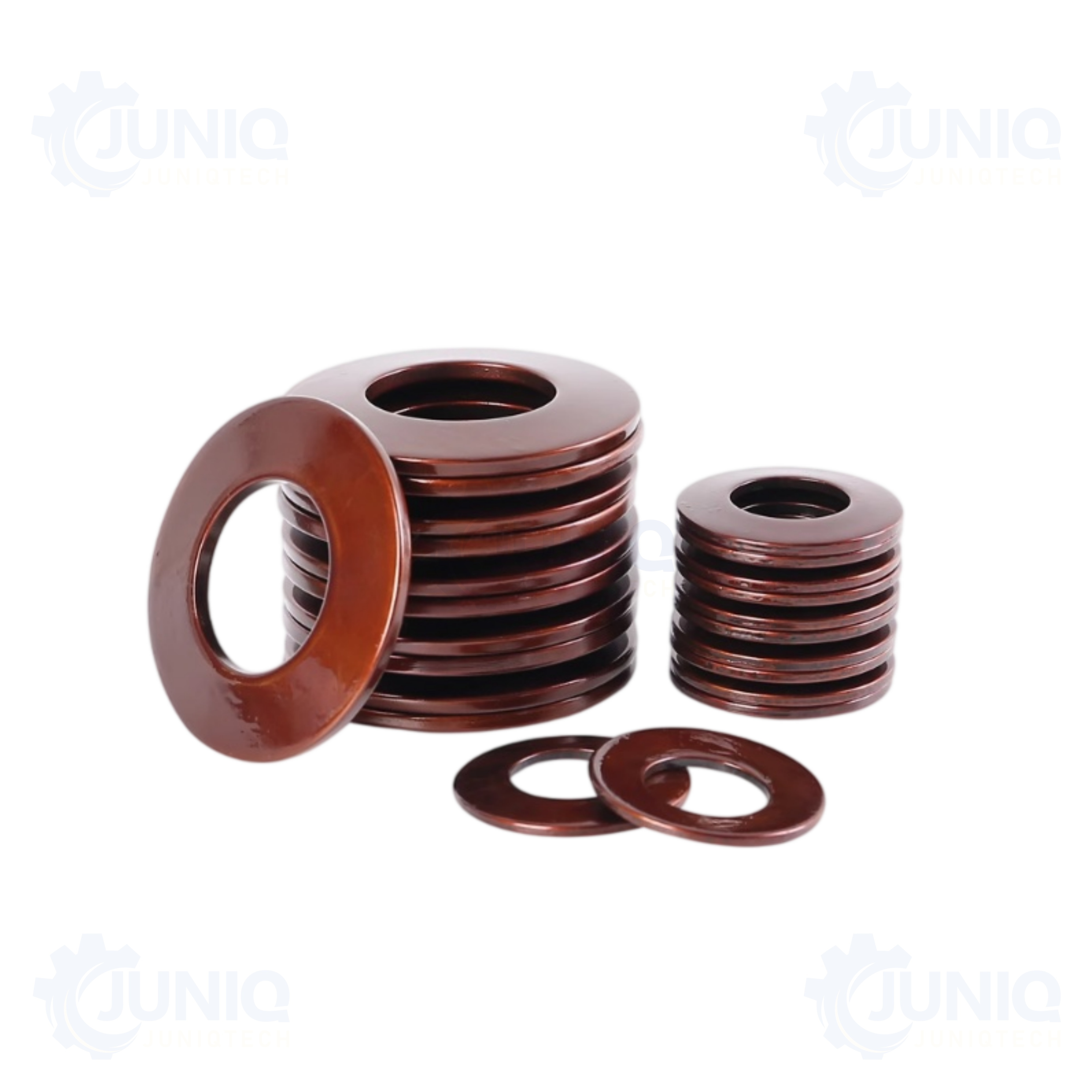

JUNIQ Precision Belleville Washer

Our Spring washers can be supplied according to applicable standards or customized drawings. Final specifications depend on the selected material, geometry, heat treatment, operating conditions, and required spring performance.

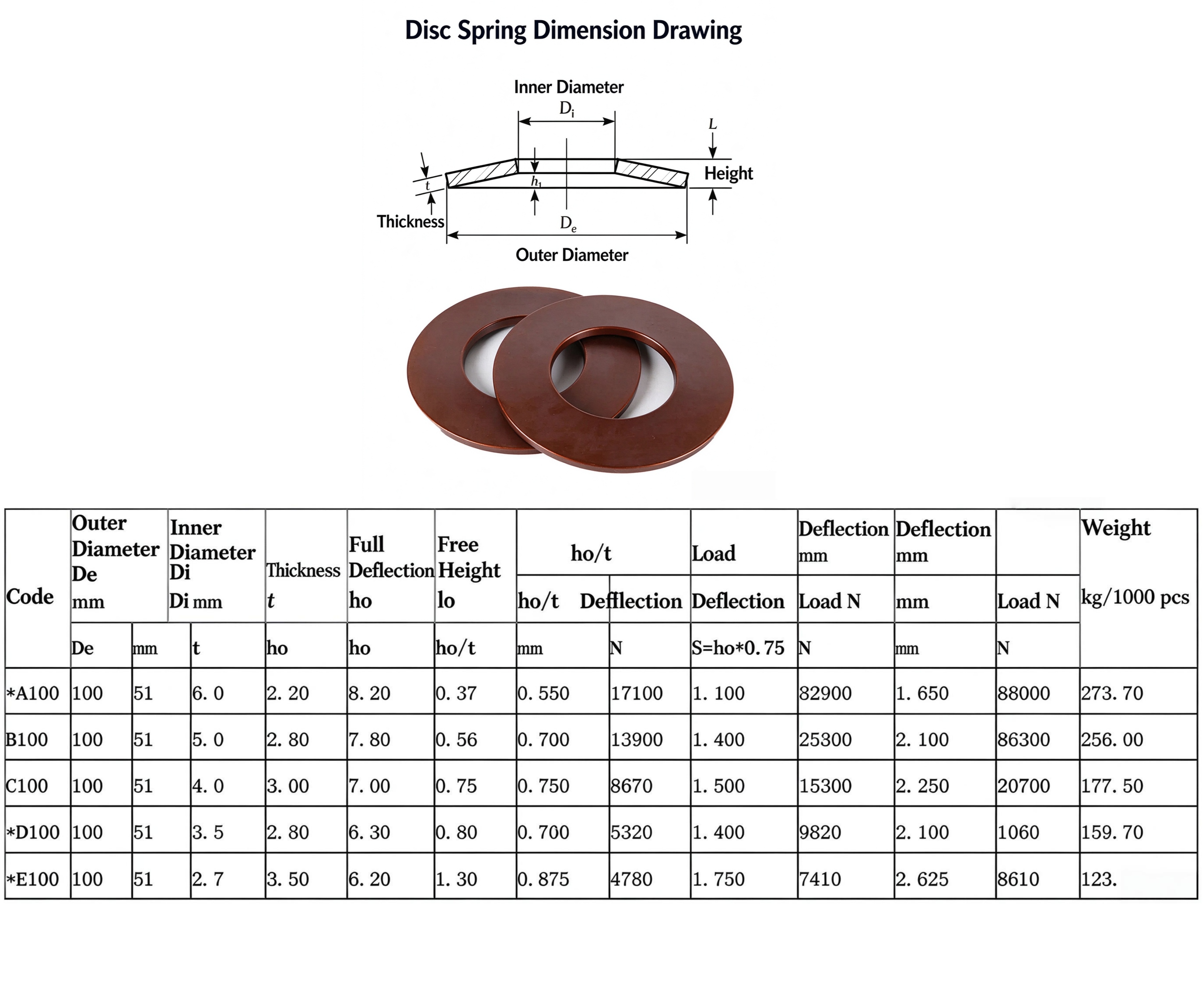

Material Selection Guide:

Note: These are general selection guidelines, not universal performance guarantees. Final suitability depends on the exact material grade, heat treatment or material condition, disc geometry, operating stress, temperature, corrosion exposure, and applicable technical specifications.

Applicable Standards:

Depending on the product design and procurement requirements, Belleville spring washers may be specified according to:

• DIN 2092: Design and calculation of disc springs.

• DIN 2093: Applicable dimensional and quality requirements for disc springs.

• Customer drawings and technical specifications.

• Agreed material, heat-treatment, surface-finish, and inspection requirements.

The applicable standard and edition should be confirmed before ordering. Custom designs do not automatically qualify as DIN-compliant products.

Where Disc Spring Washers Are Used？

Belleville spring washers are used across a wide range of industries where controlled axial force and compact installation are required.

✅Industrial Machinery and Equipment

Used in selected bolted assemblies, machine components, and mechanical equipment to help maintain preload and accommodate small dimensional changes.

✅Automotive and Transportation

Applied in suitable transmission components, clutch systems, fastening assemblies, and other mechanisms requiring compact spring elements.

✅Power Generation and Energy

Used in selected turbine, generator, electrical equipment, and power-system assemblies where preload stability and thermal movement must be considered.

✅Oil, Gas, and Petrochemical Equipment

Suitable for engineered fastening systems and mechanical assemblies when material compatibility, corrosion resistance, temperature, and industry-specific requirements are verified.



✅Heavy Equipment and Construction Machinery

Used in demanding mechanical fastening applications where compact axial force and joint stability are important.

✅Marine and Offshore Equipment

Selected stainless steel grades, including 316 where appropriate, may be considered for applications involving marine exposure. Actual performance depends on salinity, temperature, crevice conditions, stress, and the required service life.

✅Aerospace and High-Temperature Systems

Selected Inconel alloys can be evaluated for specialized spring components used in high-temperature or demanding aerospace-related applications. Material certification, design validation, and applicable industry requirements should be confirmed.

✅Electrical and Electronic Equipment

Beryllium copper may be considered for specialized spring components where electrical conductivity and non-magnetic properties are important.

✅Pumps, Valves, and Fluid Systems

Used in suitable mechanical assemblies and bolted connections exposed to vibration, temperature changes, or dimensional settlement.

Have a special operating environment or material requirement? Send us your application details to discuss a customized Belleville spring washer solution.

How to Use and Install Spring Washers

Correct installation is essential to obtain the intended spring force and service performance.

Our Disc Wave Washer

Step 1: Confirm the Required Load

Determine the target clamping force, working deflection, and available installation space.

Step 2: Check the Dimensions

Verify the inner diameter, outer diameter, thickness, free height, and contact surfaces against the assembly drawing.

Step 3: Select the Material

Choose a material according to required spring performance, loading cycle, temperature, corrosion exposure, electrical requirements, and applicable standards.

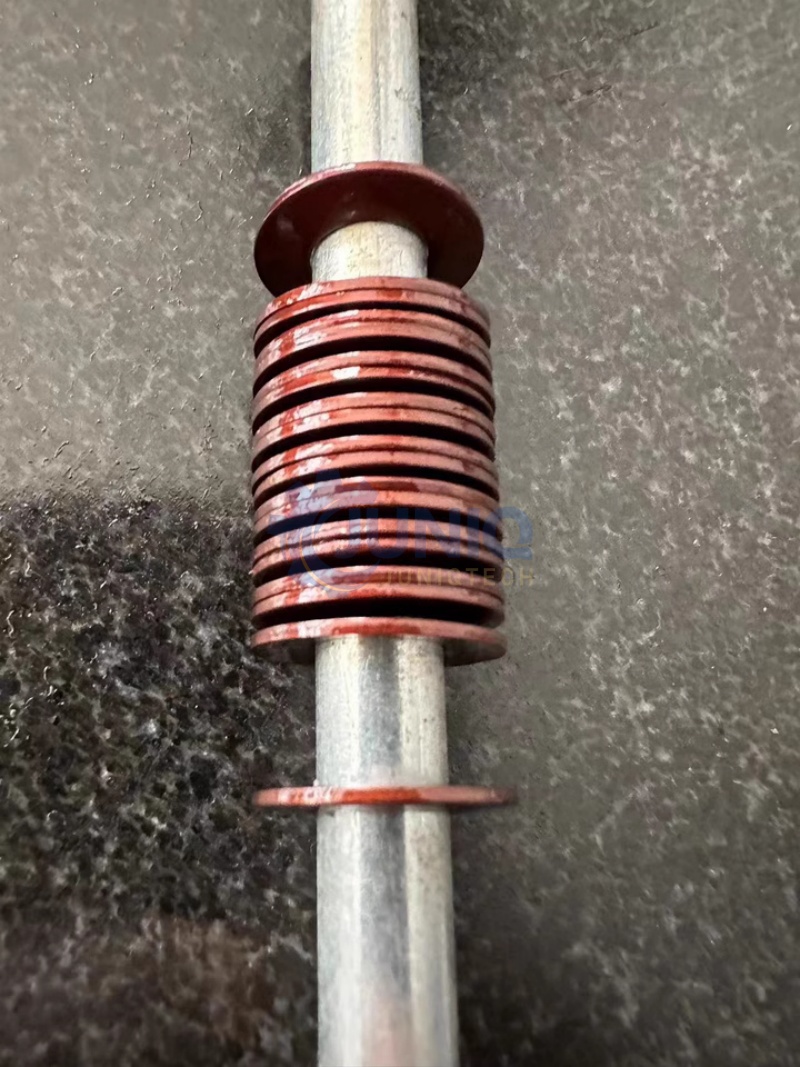

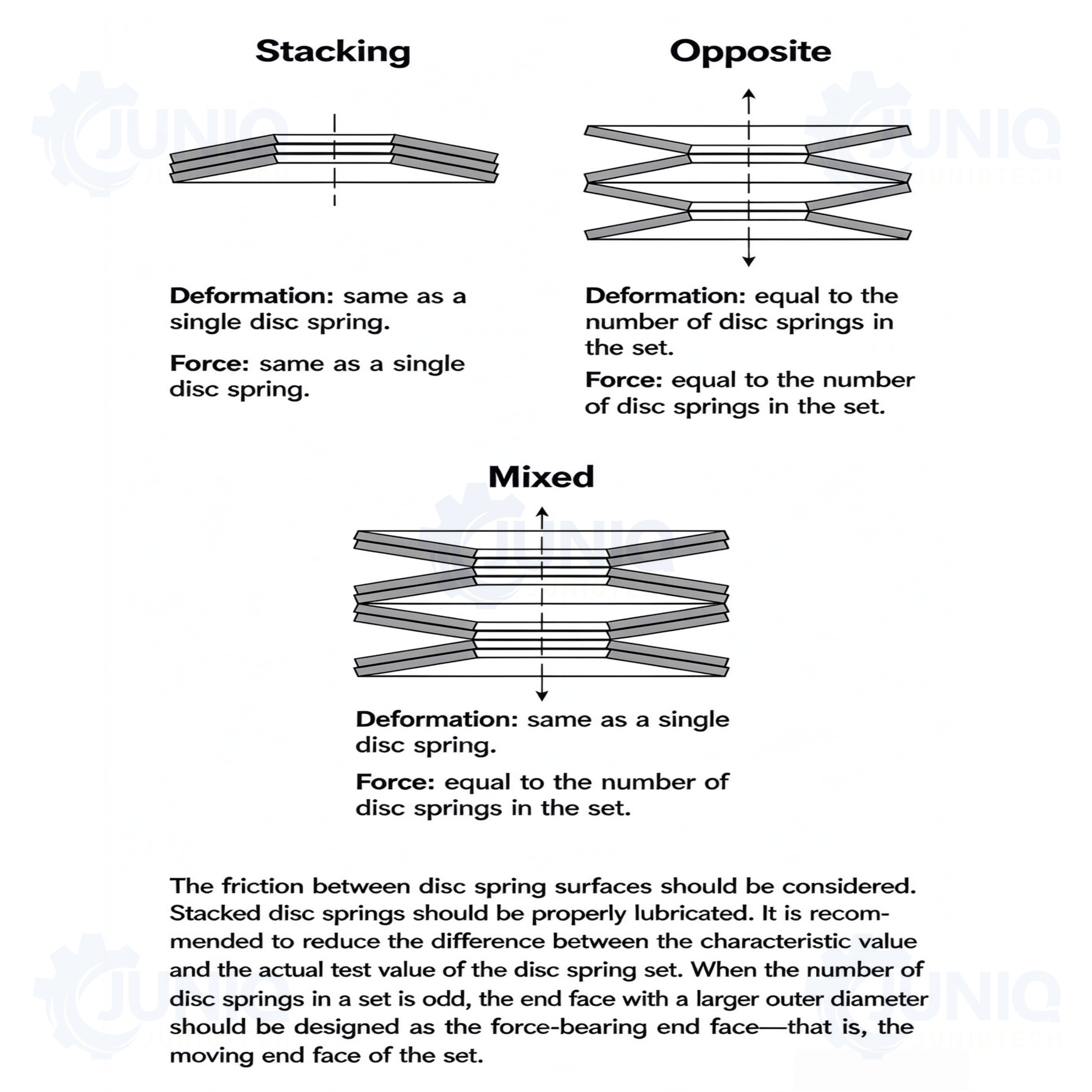

Step 4: Select the Correct Stacking Arrangement

Choose a single disc or an appropriate series, parallel, or combined stack according to the engineering design.

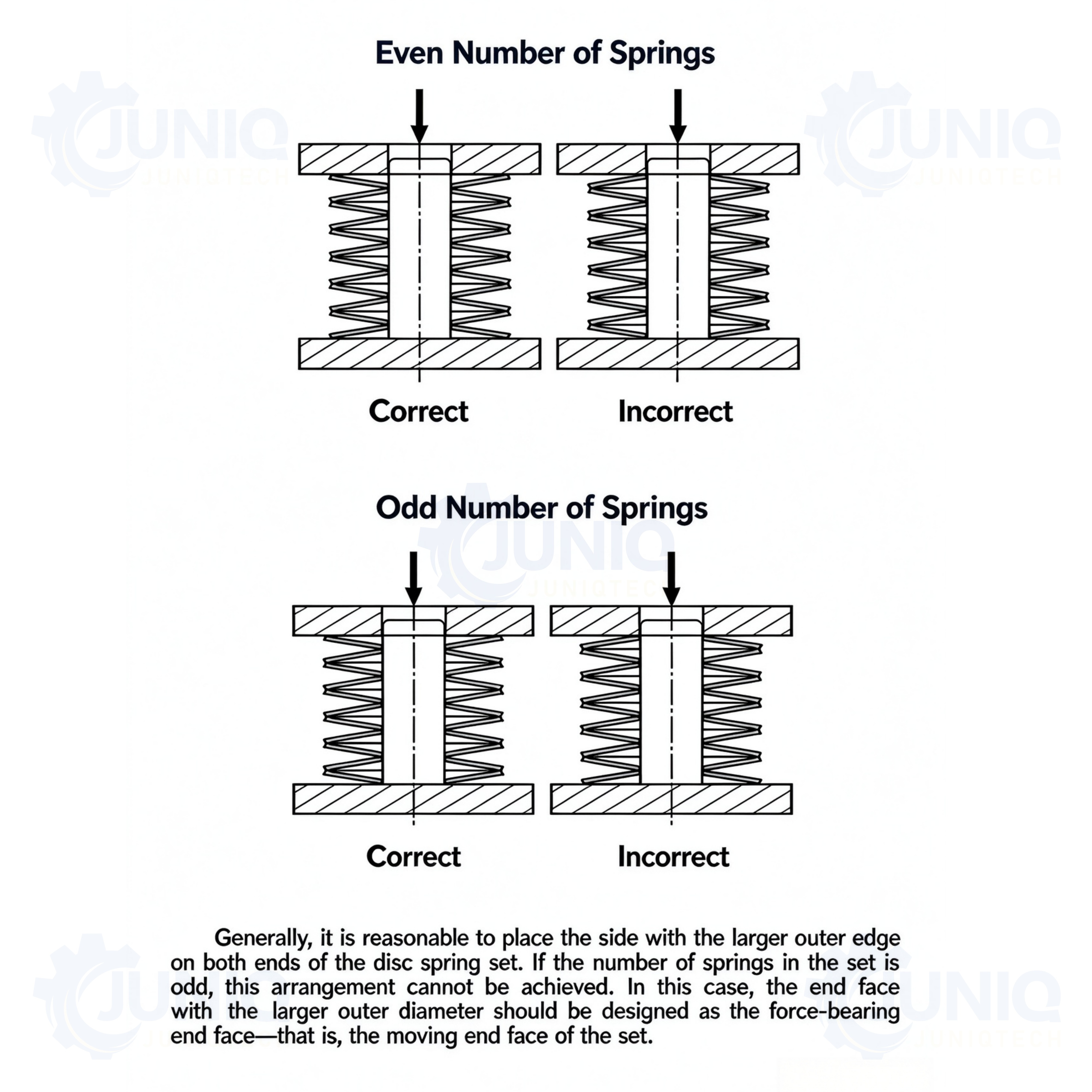

Step 5: Install in the Specified Orientation

Follow the approved assembly drawing and required washer orientation. The cone profile and contact arrangement affect the spring response.

Step 6: Follow the Specified Tightening Procedure

Use the specified tightening method and preload or torque requirements. A generic tightening torque should not be assumed to produce the required clamping force in every assembly.

Step 7: Inspect the Final Assembly

Verify installation height, alignment, and relevant fastening parameters. Avoid unintended flattening, overloading, or operation beyond the approved deflection range.

Installation note: Belleville spring washers are not a universal solution to every vibration or loosening problem. Their effectiveness depends on joint design, preload, surface conditions, loading, and correct engineering selection.



Other Products of JUNIQ pRECISION

PDisc Base/Square Plate Vertical Hold-down Toggle Clampopular Picks

Ratchet F Clamp for Welding Table

Adjustable Positioning and Clamping Tool

Welding Table Quick Locking Pin

Zirconia Abrasive Sanding Belt

Premium Quality Abrasive Flap Disc

Metal Cutting Disc for Angle Grinder

Oring seals NBR/SI/FKM/EPDM

Tailored Fasteners Solutions

Specializing in custom fasteners, we provide customers with integrated fastener solutions ranging from demand analysis, product design and development, manufacturing to quality verification.

How are Our Spring Washer Shipped?

We understand that secure packaging, clear product identification, and reliable shipping arrangements are important for industrial buyers.

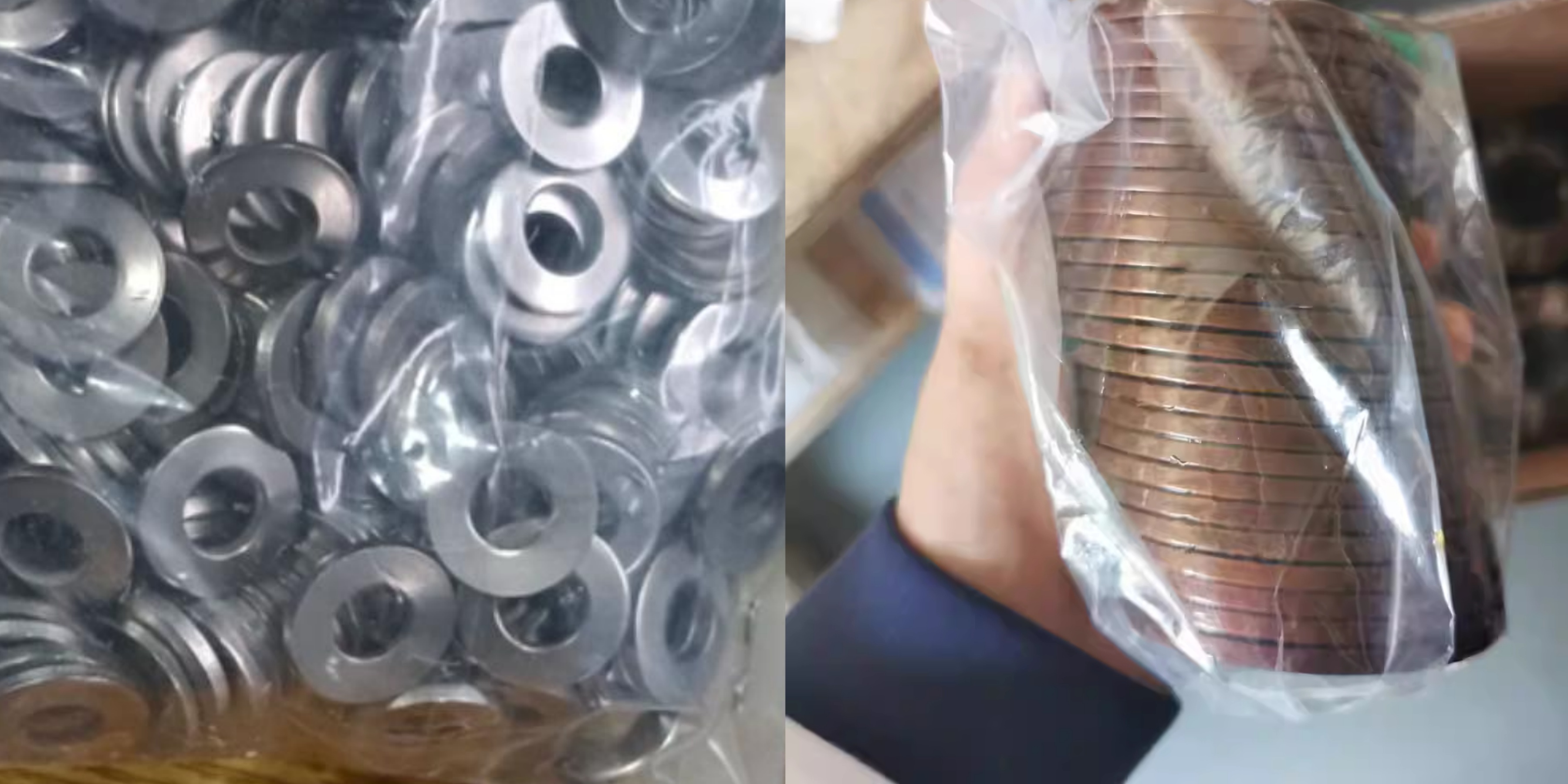

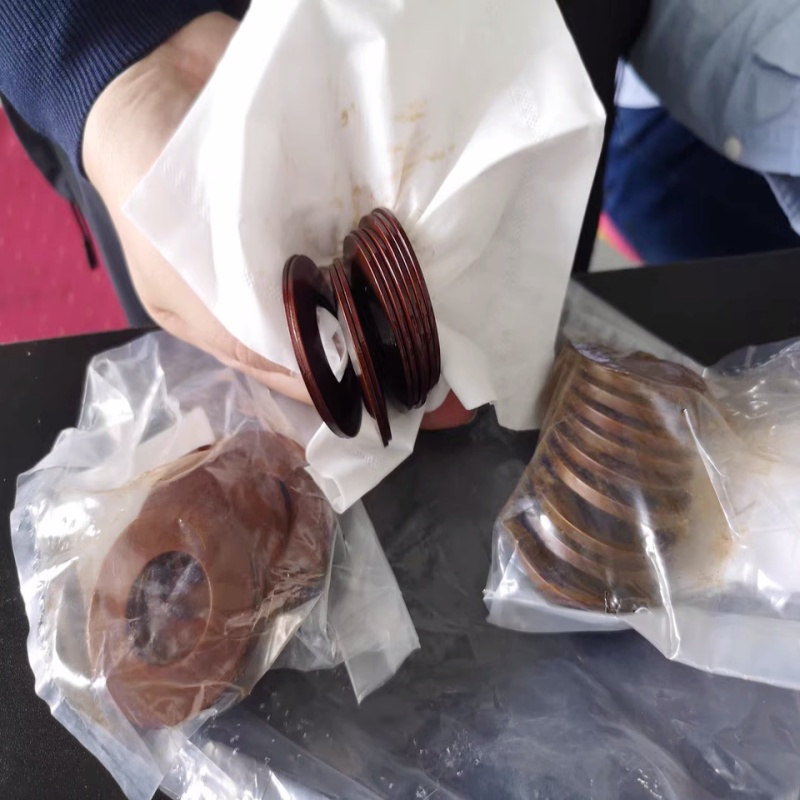

Standard Packaging

Belleville spring washers can be packed in suitable inner bags, cartons, or other protective packaging according to product dimensions, quantity, and handling requirements.

✓Bulk Packaging

For larger orders, bulk packaging and carton-level identification can be arranged to simplify receiving, inventory management, and production-line handling.

✓Customized Packaging

Subject to agreement, packaging requirements may include:

• ✓Product labels and part numbers

• Size, material, and batch identification

• ✓Customer-specific packaging instructions

• Inner packaging and outer carton specifications

• ✓Palletized shipment for suitable bulk orders

Shipping Options

Available shipping methods depend on order quantity, destination, delivery schedule, and agreed trade terms. Air freight, sea freight, and express courier services can be evaluated according to the order.

Packaging marks, shipping documents, destination requirements, and applicable export documentation should be confirmed before dispatch.

Planning a bulk order? Share your required material, estimated quantity, and destination country to discuss suitable packaging and shipping arrangements.
