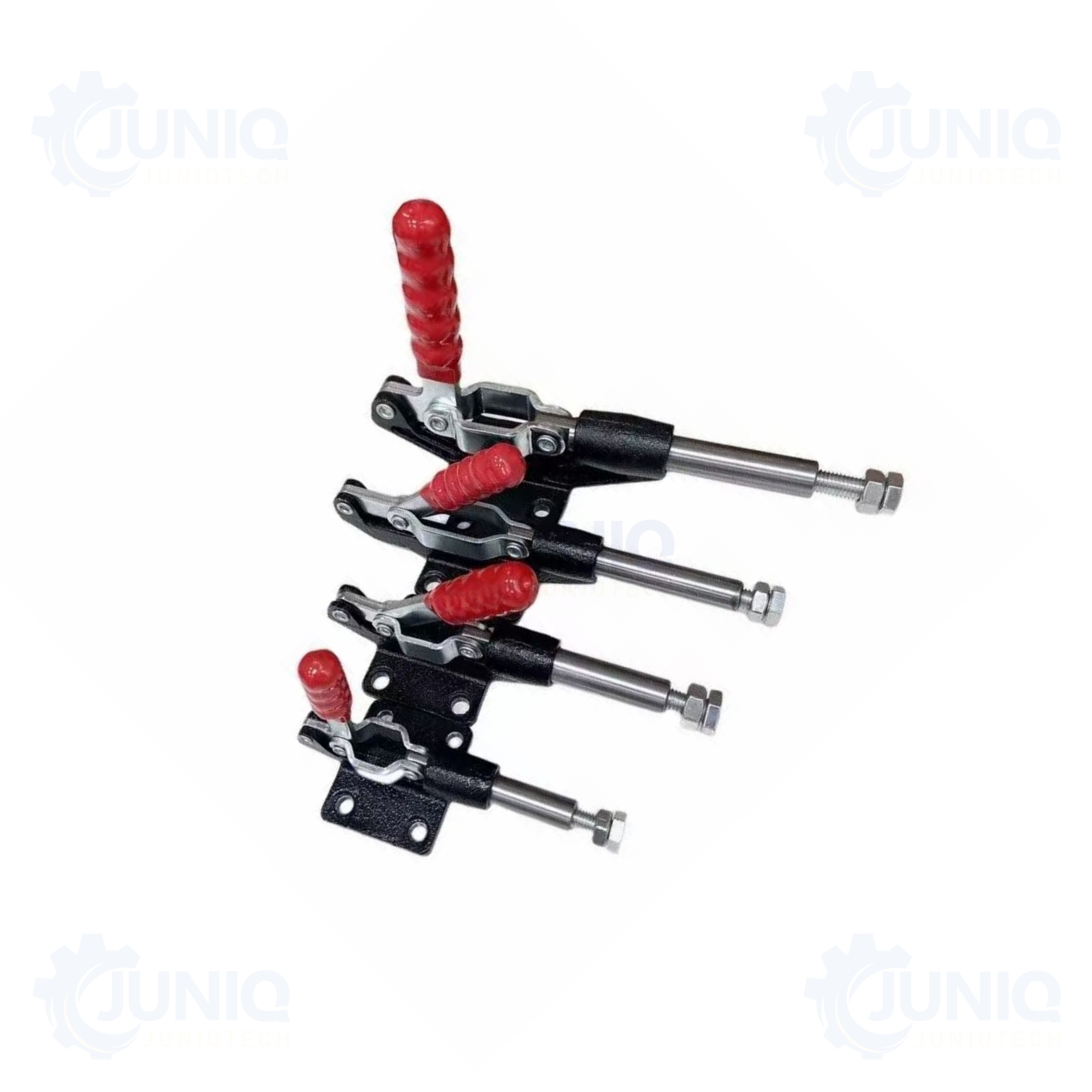

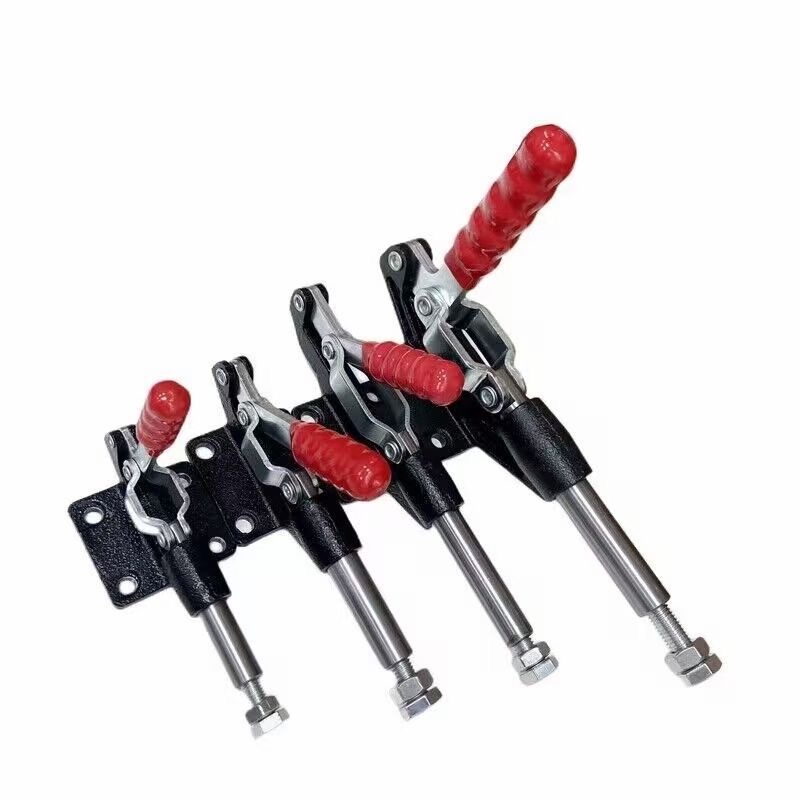

Push Pull Toggle Clamp
Explore the push-pull toggle clamp with round mounting block for industrial workholding, assembly fixtures, machining setups and custom clamping applications. Contact Juniq Precision for product details and quotations.
Features
- Push-Pull Operating Mechanism
- Compact and Practical Structure

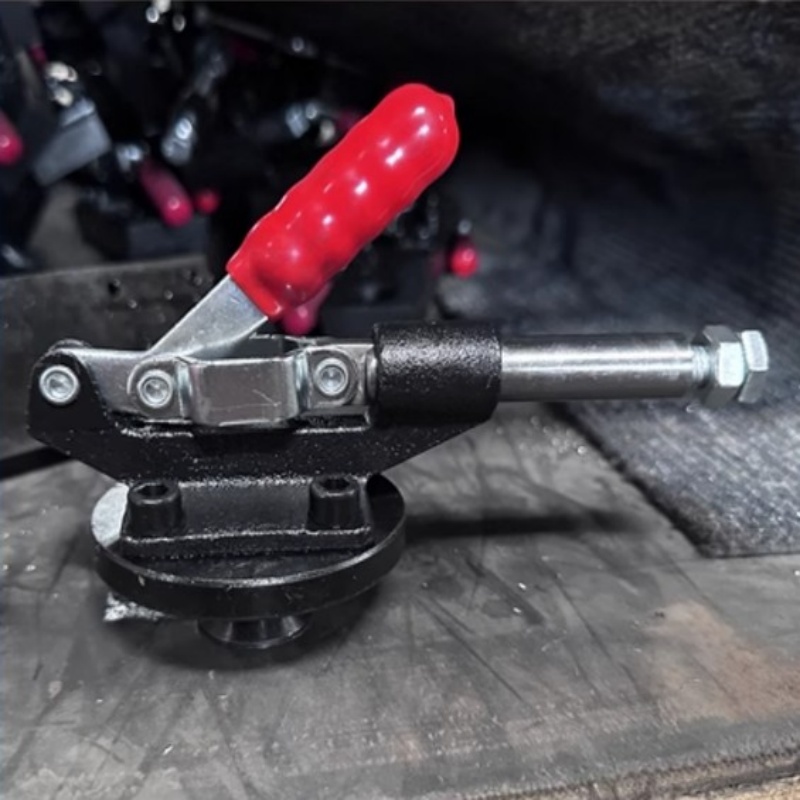

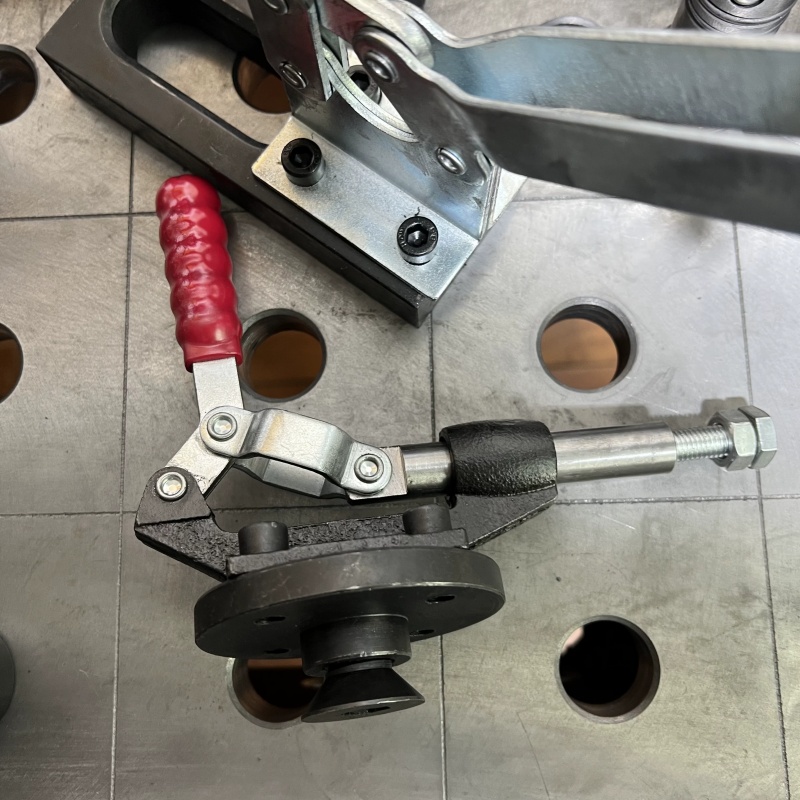

- Round mounting block
Applications

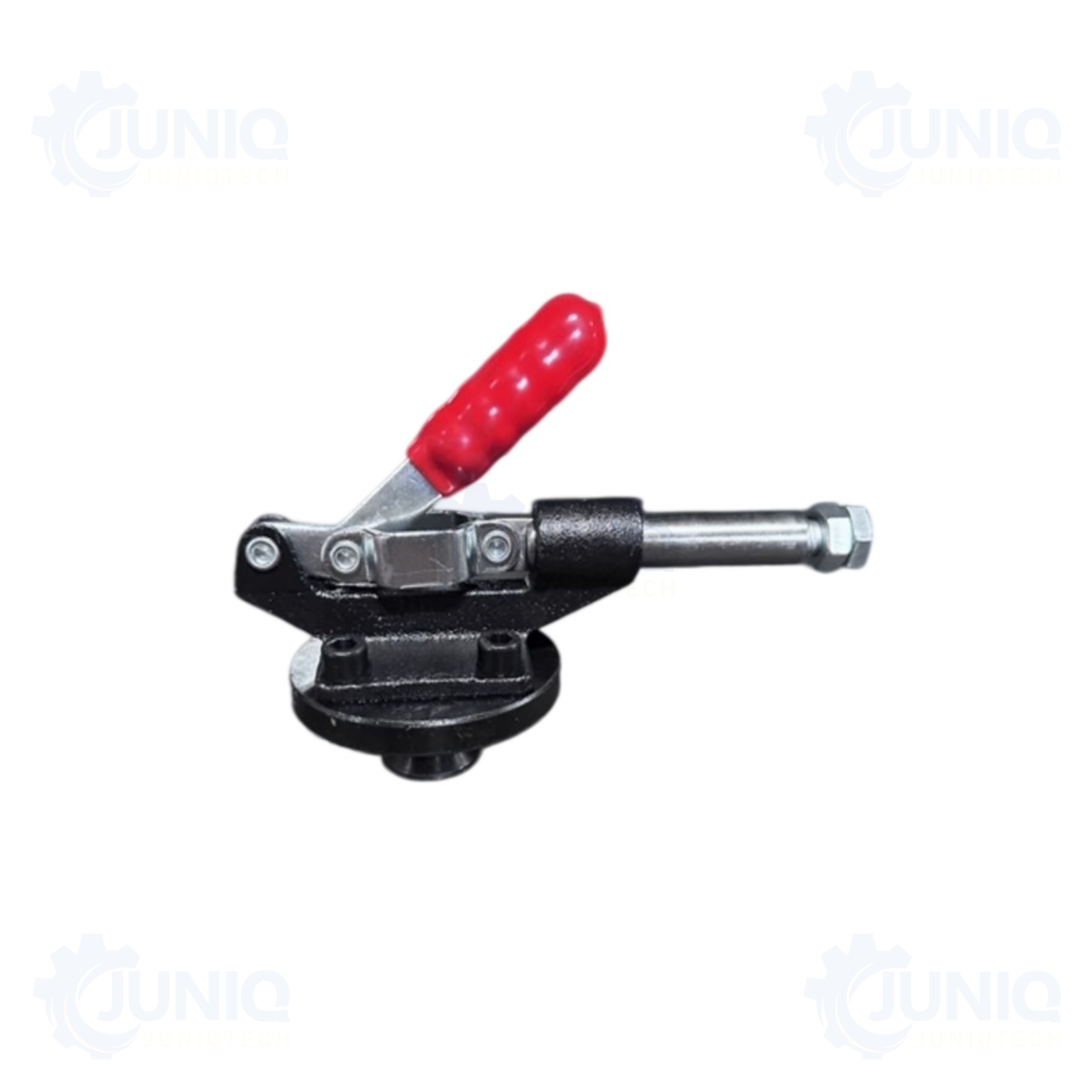

Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base
Reliable Industrial Solutions for Metal Work and Industrial Applications
ⓘ Important Notice: Due to the wide range of specifications available, not all options can be listed here. Please contact our sales engineers for the complete specification sheet and corresponding quotation.
Integrated into compatible worktables, welding fixtures
The Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base is a manual clamping device designed to hold, position, and secure workpieces during industrial manufacturing, welding, machining, and assembly operations. Its push-pull mechanism allows linear clamping movement, making it suitable for fixtures that require controlled horizontal or axial positioning.
Available with a round mounting block or square plate base, this push-pull toggle clamp offers flexible installation options for different fixture designs. It can be integrated into compatible workholding systems, custom jigs, welding fixtures, and assembly equipment.
Contact Us Now!
Email: info@juniqprecision.com
WhatsApp: +86 151 5226 0167
Website: www.juniqprecision.com
Design for stabel clamping system

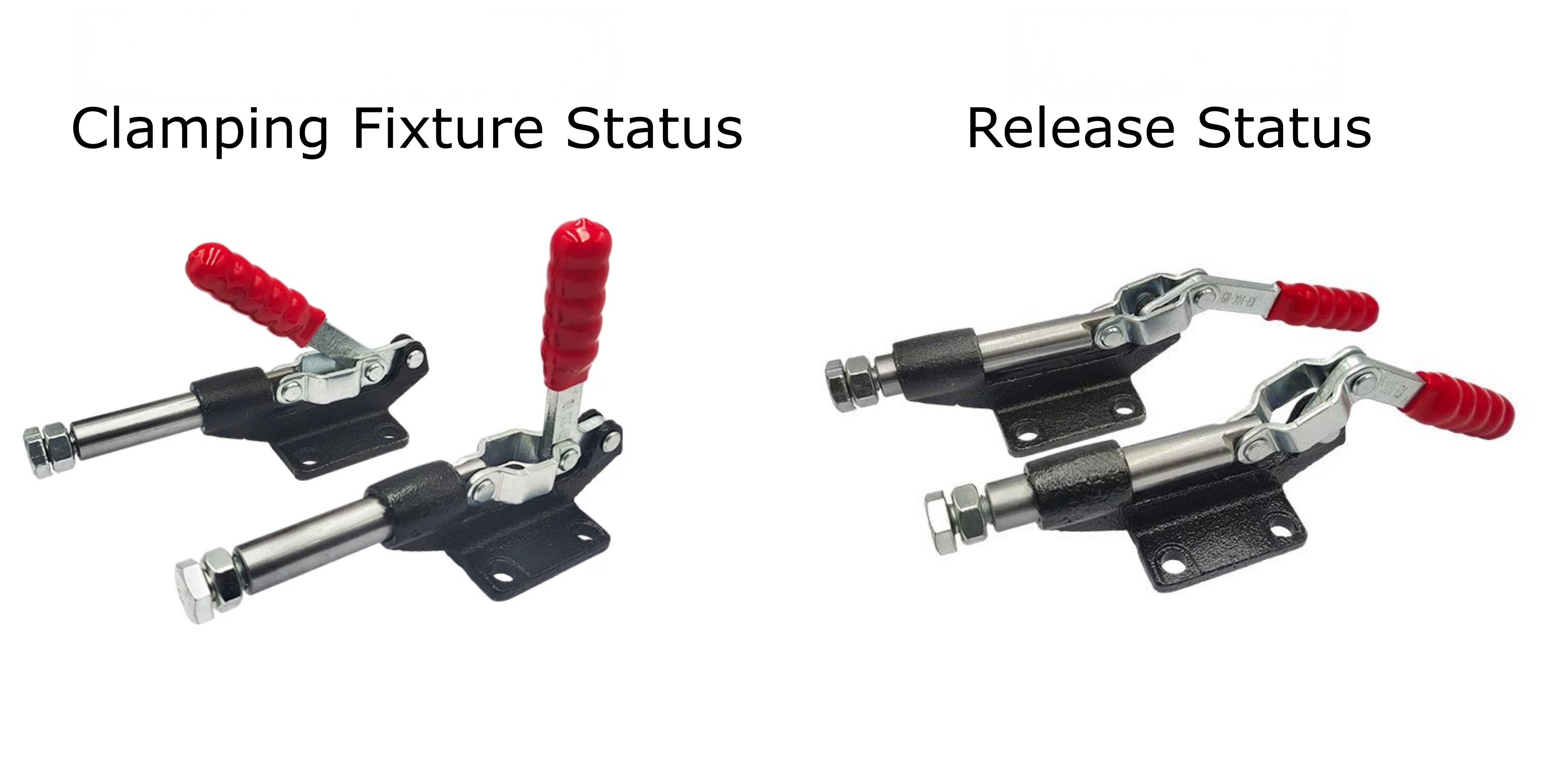

Push-pull Clamping Mechanism
The push-pull toggle clamp provides linear movement to engage or release a workpiece. Depending on the model and installation direction, it can be configured for pushing or pulling applications.

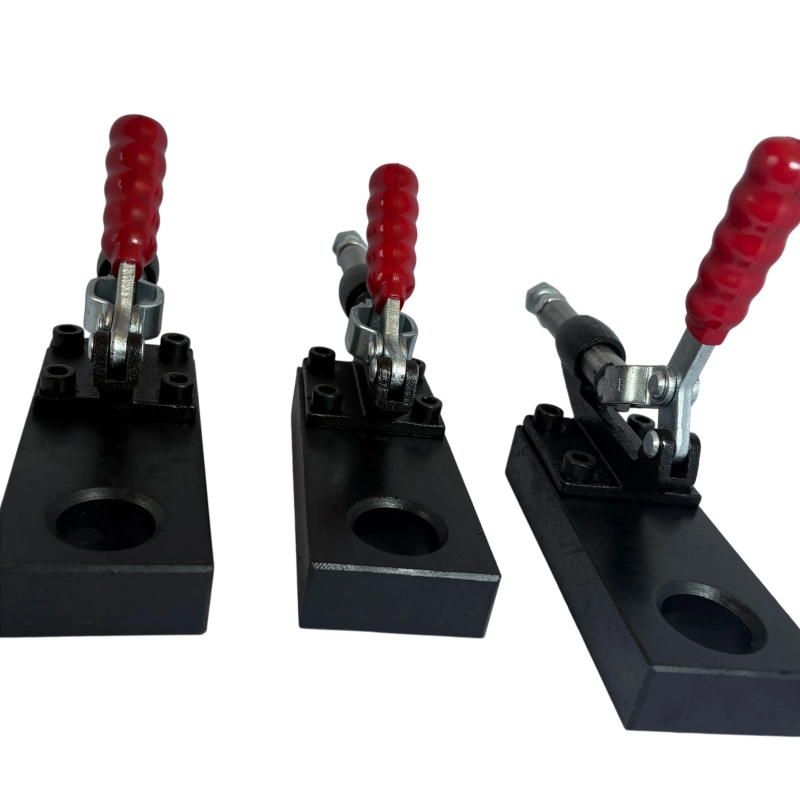

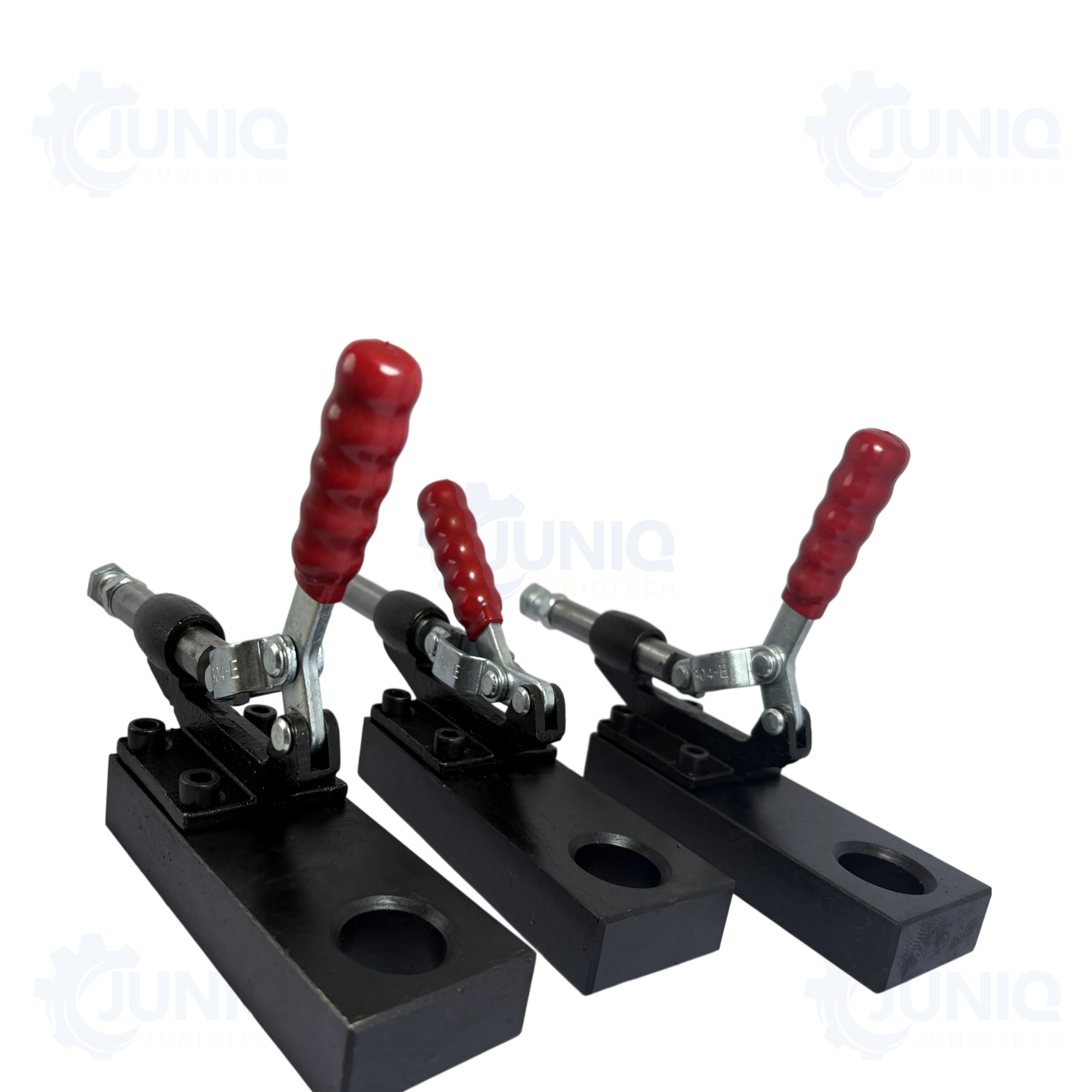

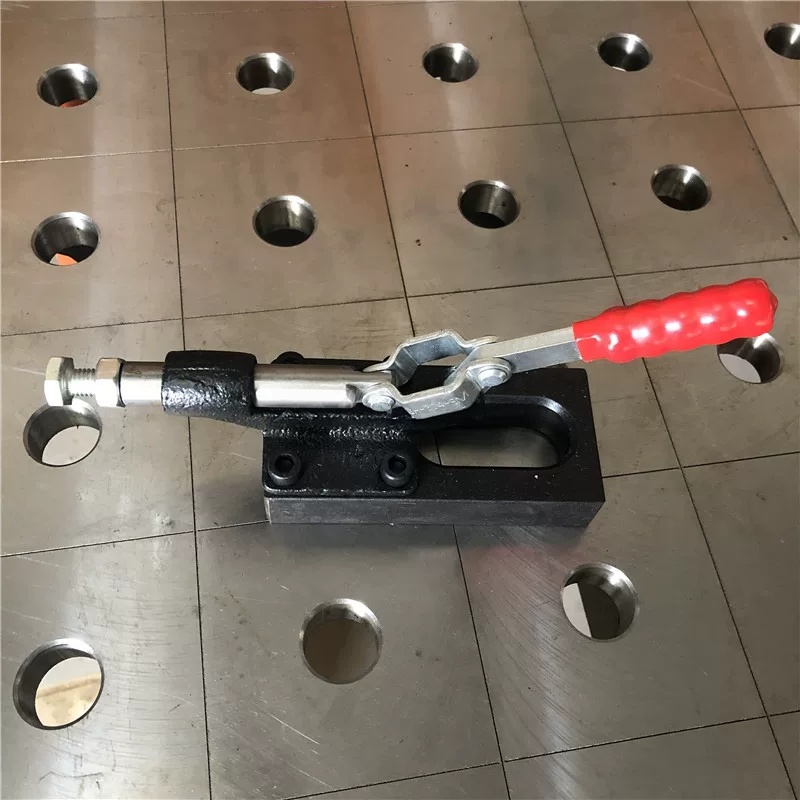

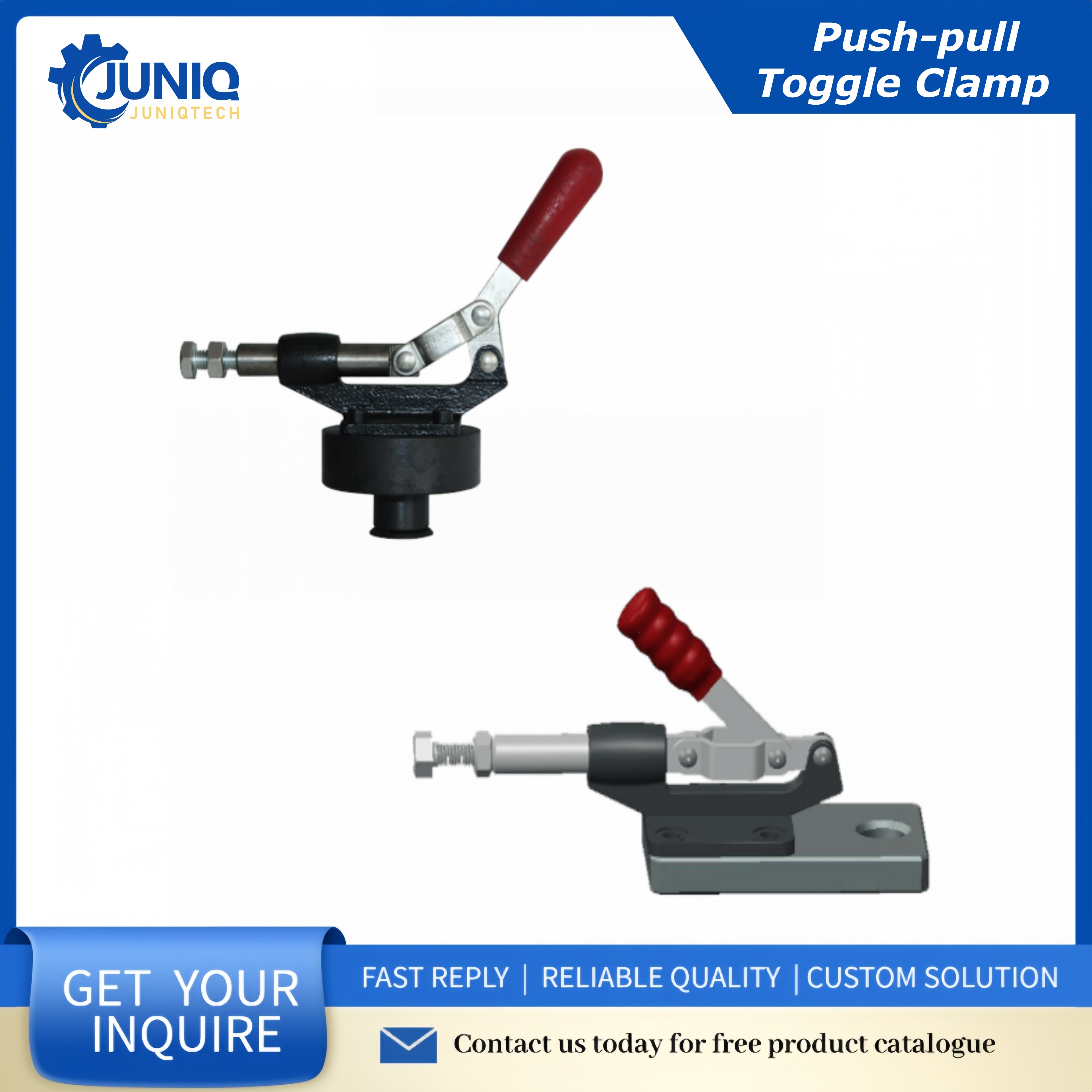

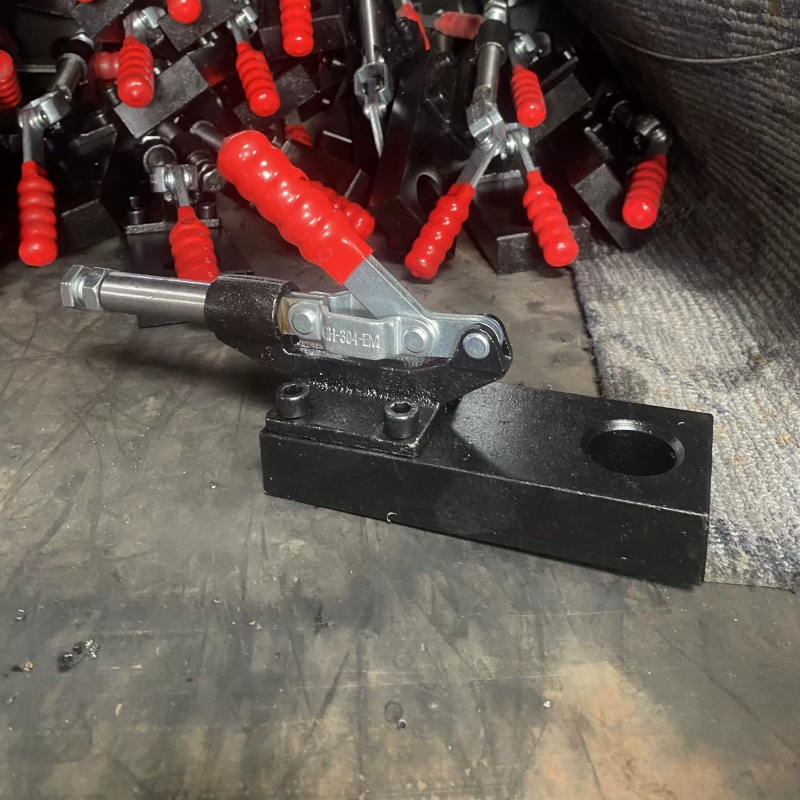

Two Mounting Base Options
Choose a round mounting block or square plate base to suit your fixture layout, available mounting space, and installation requirements.
Manual Operation
The hand-operated mechanism allows convenient adjustment and repeatable clamping in suitable production and assembly environments.
Compact Fixture Integration
The mounting structure supports installation in compatible jigs, worktables, machine fixtures, and custom workholding systems.
Flexible Industrial Applications
The push-pull toggle clamp can be used for positioning, holding, and locating components when the selected model meets the required force, stroke, and mounting specifications.
Why Choose Our Push-pull Toggle Clamp？
Flexible Installation:
The round mounting block and square plate base provide alternative mounting configurations, helping fixture designers select a suitable option for their equipment layout.
Efficient Workpiece Handling:
The push-pull mechanism supports quick manual engagement and release, making it practical for repetitive workholding tasks.
Reliable Positioning:
When correctly selected and installed, the push-pull toggle clamp helps maintain workpiece position during compatible manufacturing, inspection, and assembly processes.
Adaptable Workholding Design:
This industrial push-pull clamp can be incorporated into custom jigs, positioning fixtures, and assembly stations according to project requirements.
Specification Parameters
Please contact us to confirm the dimensions, locking mechanism and compatibility with your welding table system.
| Parameter | Specification | ||
|---|---|---|---|
| Product Name | Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base | ||
| Clamping Type | Push-pull Toggle Clamp | ||
| Base Options | Disc Base / Square Plate Base | ||
| Operation | Manual | ||
| Movement | Linear Push-pull Action | ||
| Main Function | Workpiece Holding and Positioning | ||
| Application | Welding, Machining, Assembly and Fabrication | ||
| MOQ | 1 Piece | ||
| Disc Base vs. Square Plate Base | |||
| Feature | Disc Base | Square Plate Base | |
| Base Shape | Round | Square | |
| Mounting Choice | For compatible round-base layouts | For compatible plate-style layouts | |
| Fixture Integration | Suitable for compatible workholding fixtures | Suitable for compatible workholding fixtures | |
| How to Choose | Check the base size and mounting requirements | Check the base size and mounting requirements | |
| Welding Table System | D28/D16 | D28/D16 | |
How to Install and Use a Push-pull Toggle Clamp?
Installation and Use
Choose the Mounting Base: Select the round mounting block or square plate base according to your fixture design.
Check the Specifications: Verify the mounting dimensions, stroke length, clamping force, and required operating direction.
Install the Clamp: Secure the clamp to a rigid mounting surface using compatible hardware and the specified installation method.
Position the Workpiece: Place the workpiece against the required locating surfaces.
Operate the Handle: Move the handle to engage the push-pull mechanism and secure the workpiece.
Check Stability: Confirm that the workpiece remains stable and that the clamp does not interfere with surrounding equipment.
Video of Our Products
Want to know more about Push-pull Toggle Clamp for 3D Modular Welding Table?Pls take a look at the following video!
Feel free to contact our sales team for more details and price.
Where Push Pull Toggle Clamp Are Used？
Our Push-pull Toggle Clamp are widely used across metal fabrication, manufacturing and maintenance industries for good welding efficience.

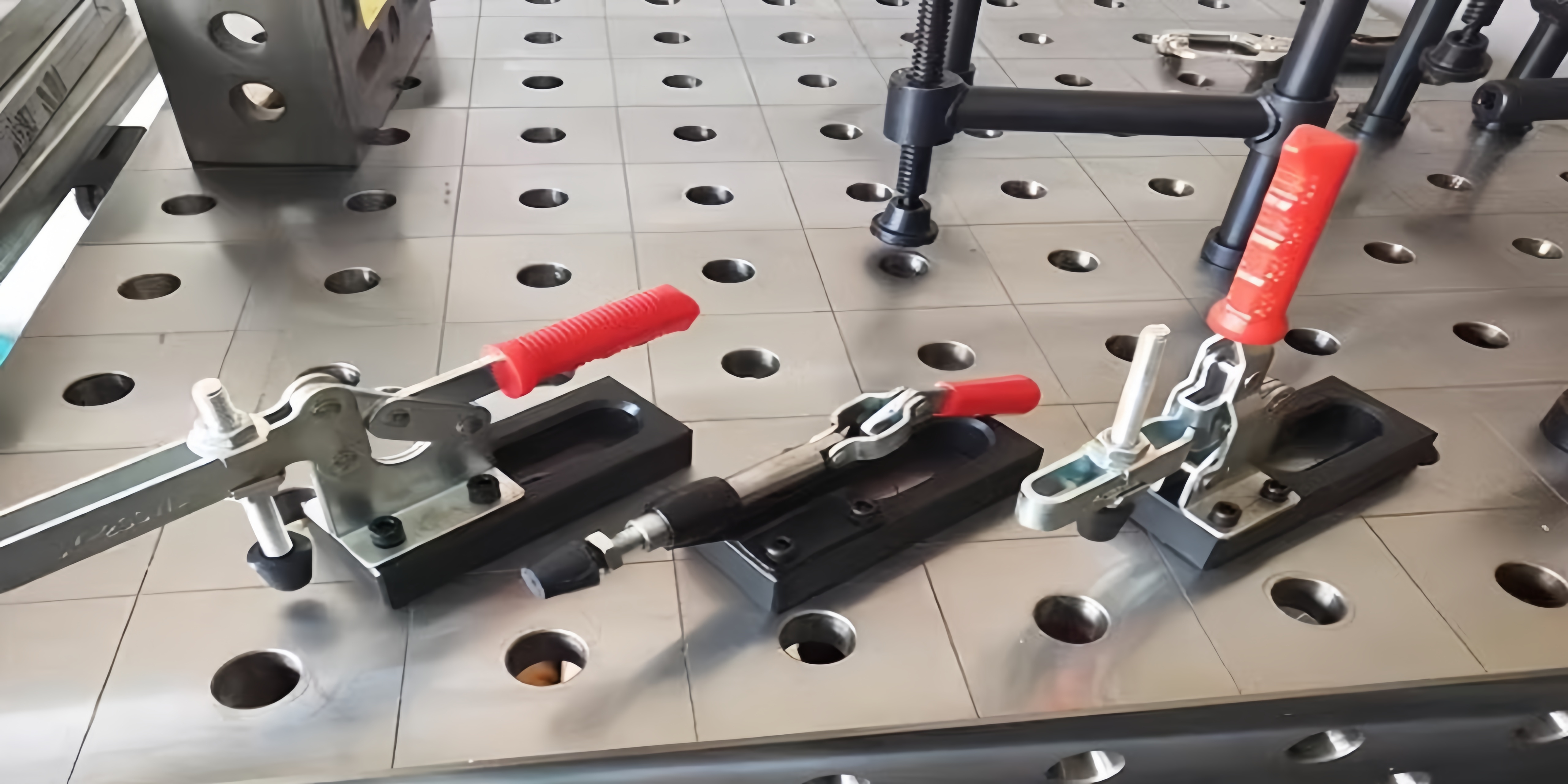

Welding Fixtures and Welding Tables
The Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base can be incorporated into compatible welding fixtures to position and secure metal components during preparation and fabrication. The mounting option should match the fixture structure and required clamping direction.
Machining and Drilling Fixtures
In suitable machining fixtures, the Push-pull Toggle Clamp helps hold workpieces in position during drilling, milling, and other machining operations. Select a model with an appropriate stroke and holding capacity for the workpiece.
Industrial Assembly Lines
The Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base supports repetitive assembly operations by applying linear clamping movement to hold components in position during fitting, fastening, or inspection.
Custom Jigs and Positioning Systems
The Push-pull Toggle Clamp can be integrated into custom jigs and workholding systems where linear pushing or pulling action is required. The round mounting block or square plate base can be selected according to installation dimensions and fixture design.
Product Inspection and Testing Fixtures
The Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base can be used in suitable inspection fixtures to hold components in a repeatable position during dimensional checks, visual inspection, and assembly verification.
Automotive Parts Manufacturing
In automotive component production, the Vertical Hold-down Toggle Clamp can be incorporated into suitable assembly and inspection fixtures to hold metal components in position during repetitive manufacturing operations.
Customization and Ordering
Looking for a Push-pull Toggle Clamp for your modular welding table? We can discuss customized dimensions, materials and locking configurations based on your drawings, samples or application requirements.
Customization Options
- ✓ Material selection
- ✓ Custom sizes
- ✓ Diameter specifications
- ✓Private label and branding
- ✓Custom packaging design
Request a Quote
To help us identify the right product for your application, please provide:
-
✓Required dimensions and table hole size
-
✓Material and surface treatment requirements
-
✓Locking mechanism or reference photos
-
✓Estimated order quantity
-
✓Drawings or samples, if available
Our team can review your requirements and discuss a suitable solution.
How are Our Straight-line Action Clamp Shipped?
Inquiry & Specification
Contact our sales team with your required specifications of Push-pull Toggle Clamp ,we can discuss suitable packaging and shipping arrangements according to product dimensions, order quantity and destination.

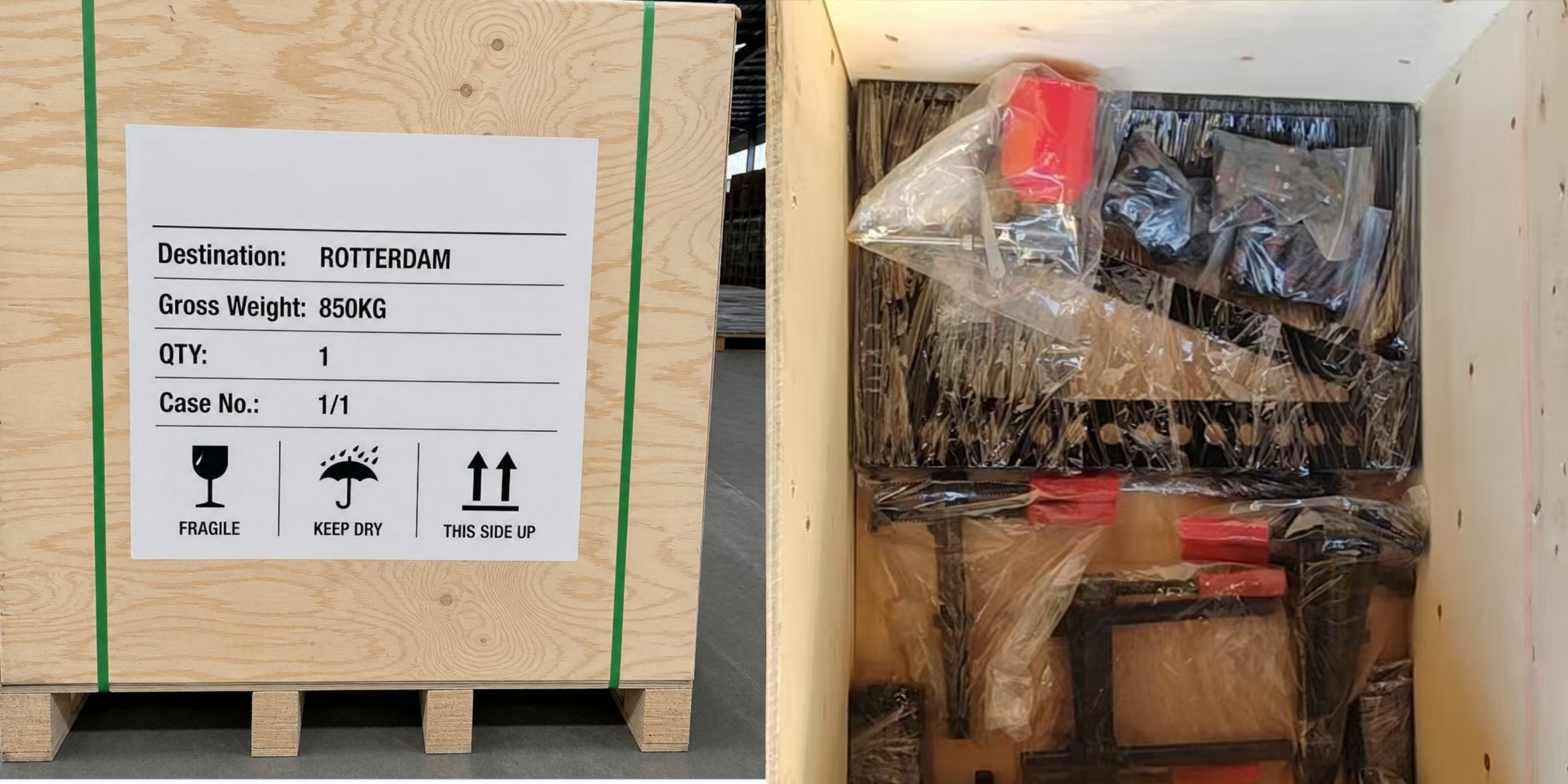

Packaging
Standard industrial packaging ensures safe transit. Custom packaging and labeling available for OEM customers. Bulk orders shipped on pallets with protective wrapping.
Delivery & Lead Time
Standard production lead times range from 7-15 days depending on order quantity and specifications. Express shipping options available for urgent requirements.
Why Choose JUNIQ Precision?
Push-pull Toggle Clamp
Juniq Precision supplies industrial clamping products, welding fixture components, and workholding accessories for manufacturing and fabrication applications.
We understand that different fixtures require different mounting structures, stroke lengths, and clamping arrangements. Our team can help you review the specifications of the Push-pull Toggle Clamp with Round Mounting Block or Square Plate Base and discuss suitable options for your application.
For product enquiries, provide your required quantity, mounting dimensions, intended application, or technical drawing to help us assess product compatibility.
Welcome to contact us for inquiry!
